ブルー水素の生産と市場2023-2033年:技術、予測、プレイヤー


Blue Hydrogen Production and Markets 2023-2033: Technologies, Forecasts, Players

本レポートでは、ブルー水素の製造技術、サプライチェーン、キープレイヤー、材料、主要なイノベーション、プロジェクトについて評価しています。6つの主要なブルー水素技術の比較と、それらの技術に関する10... もっと見る





出版社 出版年月 電子版価格 ページ数 図表数 言語
IDTechEx
アイディーテックエックス
2023年2月9日 US$6,500
電子ファイル(1-5ユーザライセンス)
ライセンス・価格情報・注文方法はこちら
391 17 英語

日本語のページは自動翻訳を利用し作成しています。




サマリー

本レポートでは、ブルー水素の製造技術、サプライチェーン、キープレイヤー、材料、主要なイノベーション、プロジェクトについて評価しています。6つの主要なブルー水素技術の比較と、それらの技術に関する10年間の市場予測、7つの応用分野、3つの採用地域についても記載しています。また、適用可能な炭素回収・利用・貯蔵(CCUS)技術についても検証し、青色水素の製造に関する展望と課題についても考察しています。

青い水素は、石油精製やアンモニア生産など、緩和が難しいセクターにおける世界的な脱炭素化の取り組みによって成長すると思われる。IDTechExでは、世界の青色水素市場は2033年までに340億米ドルに達するまで成長すると予測しています。青色水素の製造にはさまざまなルートがあり、それぞれに利点と欠点があります。IDTechExの本レポートは、これらの異なる青色水素プロセス、および関連するサプライチェーン、キープレイヤー、材料、主要な技術革新とプロジェクトについて評価しています。6つの主要なブルー水素技術の比較と、これらの技術に関する10年間の市場予測、7つのアプリケーション分野、3つの採用地域も含まれています。また、適用可能な炭素回収・利用・貯蔵(CCUS)技術についても検証し、ブルー水素の製造に関する展望と課題についても論じています。

ブルー水素とは?
ブルー水素とは、主に天然ガス改質や石炭ガス化などの化石燃料から水素を製造する際に、排出されるCO2の大半を炭素分離回収・利用・貯蔵(CCUS)技術によって回収・貯蔵するか、製品に利用するものである。CO2の貯蔵は、塩水帯水層や枯渇した油田などの地層にガスを圧入することで行われ、利用はセメント製造などの方法がある。炭素回収技術は、レトロフィット(改造)と呼ばれる手法で既存の水素プロセスに取り付けたり、設計によって新しい水素プラントに組み込んだりすることができる。本報告書では、特にCCUSに焦点を当て、ブルー水素プロセスに適用可能な主要技術について考察している。

一方、従来のグレーや黒・茶色の水素製造プロセスは、直接排出されるCO2(スコープ1)の大部分を大気中に排出している。一方、再生可能エネルギーによる水の電気分解で製造されるグリーン水素は、直接排出がゼロである。

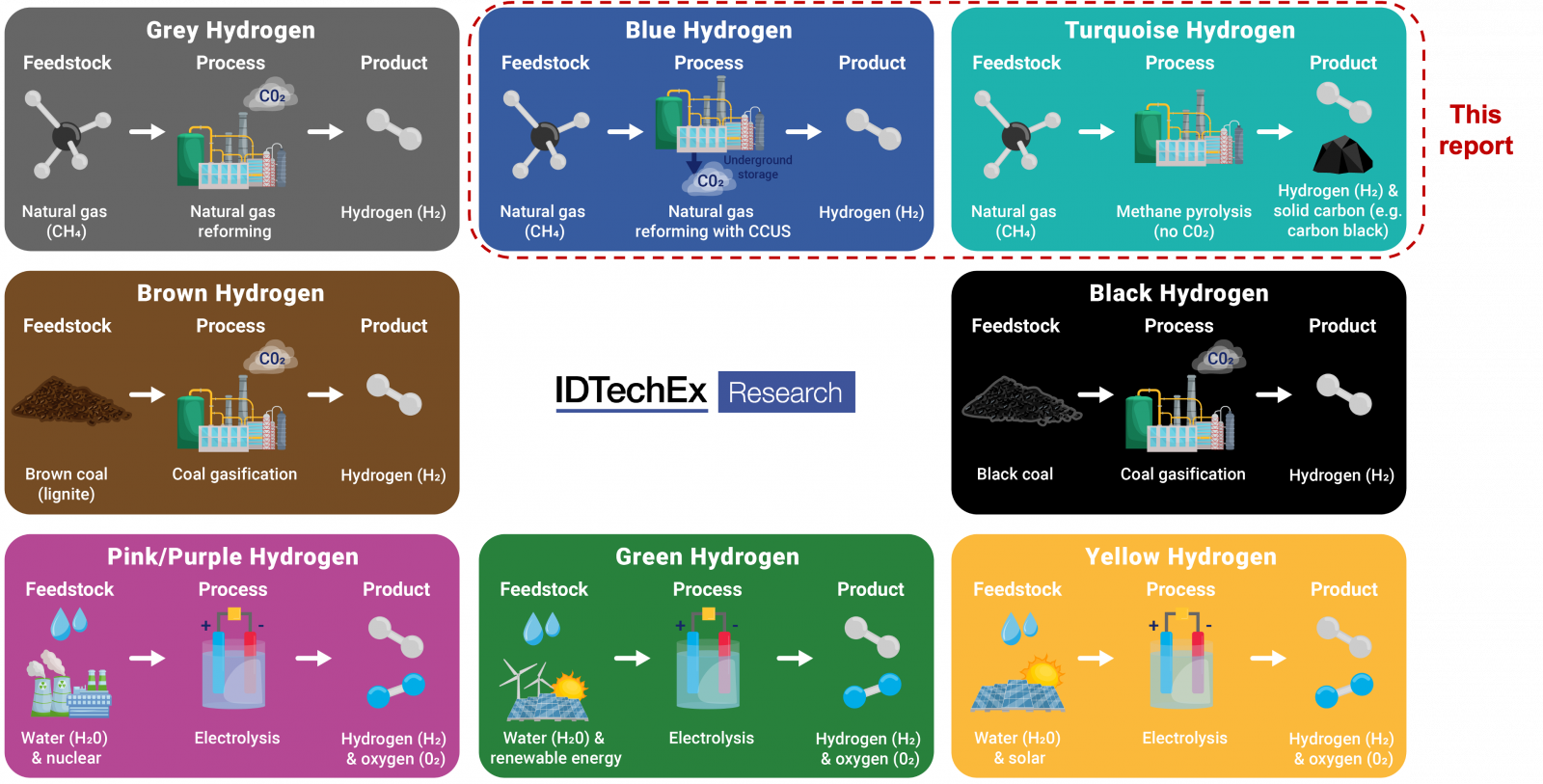

このほかにも、水素の製造方法によって、さまざまな水素の色があります。例えば、ターコイズブルーの水素は、メタンの熱分解によって製造される水素です。このため、炭素の回収が不要であり、生成された固体炭素は形状によってさまざまな用途に利用することができる。IDTechExでは、ターコイズ型水素製造は天然ガスを使用するため、厳密には青色とはみなされていないが、本レポートではターコイズ型水素製造も取り上げており、製造される水素は低炭素水素に分類される。

出典:IDTechEx

なぜブルー水素を製造するのか?
ブルー水素とグリーン水素の製造は、水素製造を脱炭素化するための2つの主要なルートである。水素は、石油精製やアンモニア・肥料生産など、現在最大の水素利用分野であり、中期的にもその傾向が続くと予想される難炭酸化分野を脱炭素化することができます。水素は、鉄鋼やメタノール生産、大型車や長距離輸送など、他の低炭素化が困難なセクターの低炭素化も可能にします。IDTechExは本レポートにおいて、これらのアプリケーションの概要を説明し、いくつかのプロジェクト例とケーススタディを紹介しています。

出典:IDTechEx

長期的な脱炭素社会を実現するためには、化石燃料を完全に排除し、さらなる排出を防ぐために、大規模なグリーン水素電解槽のインフラを持つことが理想的である。しかし、グリーン水素には、電解槽技術の高コスト、利用可能な再生可能電力への依存度の高さ(総CAPEXに占める割合が高い)などの課題があり、また、天然ガスインフラや転換可能なグレー水素プラントがあることから、ブルー水素が中期的に望ましいソリューションと考えられている。しかし、ブルー水素には、CCUS用地の確保がボトルネックとなり、成長が阻害されるなど、多くの課題がある。これらの課題については、本レポートで詳しく解説しています。

報告書に掲載されている製造方法の概要

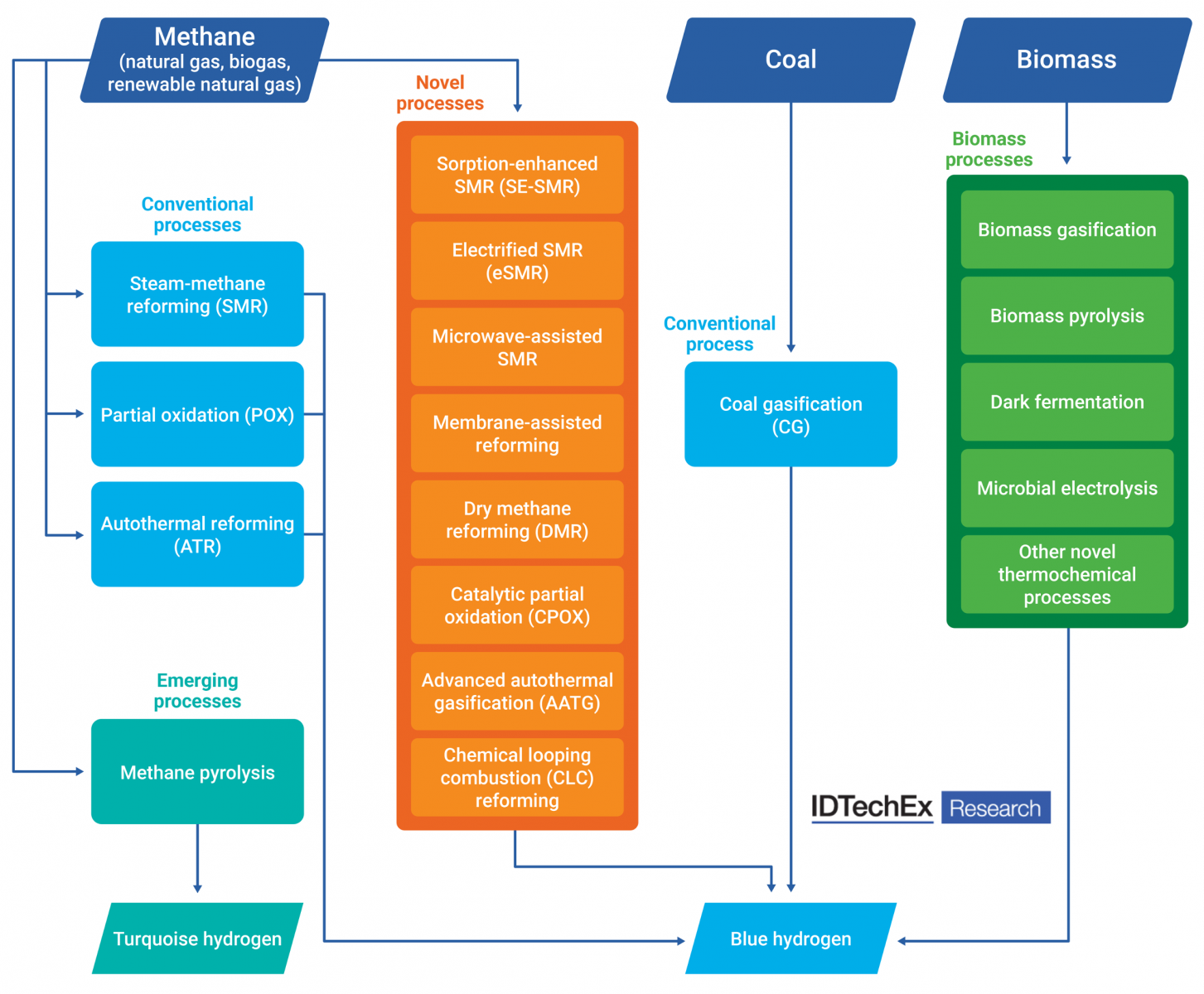

蒸気メタン改質(SMR)は、世界で最も発展し、広く使用されている水素製造技術(灰色水素)である。石炭ガス化(CG)も、世界有数の石炭埋蔵量を誇る中国を中心に、水素(黒色/茶色水素)の製造技術としてよく利用されている。その他の従来の水素プロセスとしては、廃油や精製品の水素化に有用な部分酸化(POX)や、最近開発されたメタンの自己発熱型水蒸気改質(ATR)があり、青色水素の製造にはSMRよりもコスト効率が良い。

本報告書では、水素と固体炭素製品(ほとんどの場合、後者はカーボンブラック)を生産するメタンの熱分解についても取り上げる。従来のプロセスは、エア・リキード社やトップソー社のような確立されたプロセス・技術開発者によって占められているのに対し、メタン熱分解の分野は新興企業や中小企業(SMEs)によって占められ、その一部は急速に技術の商業化を進めています。IDTechExは、様々なメタン熱分解技術を比較し、最も開発され有望な技術を特定します。IDTechExが特定し評価した他のプロセスは、新規プロセス(純粋な熱化学)とバイオマスプロセス(バイオマス原料を用いた生物化学、生化学、熱化学)のカテゴリーに分類されます。

本レポートでは、これら全ての技術を分析し、イノベーションの主要分野、使用材料、サプライチェーンに関わるプレイヤー、プロジェクト/ケーススタディなどを紹介している。レポートの一部では、一般的な定性的議論とLCOHなどの定量的な指標を用いて、各プロセスを相互に比較しています。これらの比較は、青い水素産業においてどの技術が最も成功し、有望であるかというIDTechExの分析に使用された。


ブルー水素製造の技術・市場動向
IDTechExは、世界の青色水素市場が2033年までに340億米ドルに達すると予測しています。IDTechExの分析によると、青色水素の生産能力拡大のほとんどはヨーロッパ、特に青色水素とCCUSを使用して大規模産業クラスターの脱炭素化を目指す英国などの国からもたらされる。また、北米でも大きな成長が見込まれ、オーストラリアなどでも開発のペースが上がることが予想されます。市場を支配するアプリケーションは精製とアンモニアですが、メタノールなど他のアプリケーションも大きな成長を見せるでしょう。

本レポートの主なポイント:
  • 水素の用途、国家戦略、ブルー水素を取り巻く問題の概要
  • ブルー水素の製造技術、材料、キープレイヤー、サプライチェーン、プロジェクトの分析
  • 新規の青色水素製造方法(熱化学、生物化学、生化学)
  • LCOHや排出強度などの指標に基づく技術比較
  • 市場分析・予測
  • CCUSの背景とブルー水素製造に適用可能な技術

本レポートでは、以下の情報を提供しています。

水素市場の背景:
  • 水素と水素の色の紹介、ブルー水素の必要性、グリーン水素製造の課題
  • 水素の現行および新興アプリケーションの概要
  • 世界各国の水素に関する国家戦略の分析
  • 青色水素の製造における潜在的な主要課題
  • 技術的な挑戦とイノベーションの機会
  • ブルー水素開発の推進要因の概要

青い水素の製造技術、材料、キープレイヤー、プロジェクトなどについての洞察:
  • ブルー水素製造技術、キープレイヤー、プロジェクトに関する分析:蒸気メタン改質(SMR)、自己熱改質(ATR)、部分酸化(POX)、石炭ガス化(CG)、メタン熱分解、バイオマスプロセス、新規熱化学プロセスなど。
  • ブルー水素分野における最先端の技術革新。
  • 触媒や技術サプライヤーから最終用途まで、ブルー水素のバリューチェーンに関わる主要プレイヤーのケーススタディとリスト。
  • 水素の平準化コスト(LCOH)、技術的即応性レベル(TRL)、二酸化炭素排出量などの定性的分析および定量的指標を用いたブルー水素製造技術の比較。
  • ブルー水素プロセス用の主要材料とそれを供給するプレイヤーの概要。
  • 触媒、吸着剤、膜、容器材料、副産物材料などが含まれます。
  • ブルー水素に関連する炭素回収、利用、貯蔵(CCUS)についての議論。CCUSに関する一般的な情報、青色水素のためのポイントソース炭素捕捉方法の概要、炭素捕捉方法の詳細分析、サプライチェーンに関わるプレイヤーを含みます。

市場予測および分析:
  • 6つの主要製造技術(SMR、ATR、POXなど)、7つの主要応用分野(精製、アンモニア、メタノールなど)、設置地域(アジア・オーストラリア、ヨーロッパ、アメリカ)、設置タイプ(新設または改修)の10年間の水素容量予測(Mtpa/年)を掲載します。
  • 6つの主要な製造技術について、10年間のCO2排出量を百万トン/年(Mtpa)で予測。
  • 6つの主要製造技術について、ブルー水素の導入コスト(プラントCAPEX)の予測(単位:億米ドル)。
  • 6つの主要製造技術と設置タイプ(新規または改修)の青色水素の総市場予測(単位:億米ドル)。
  • 水素製造を目指す主要経済国の国家水素目標との比較。
  • 水素市場の展望。
